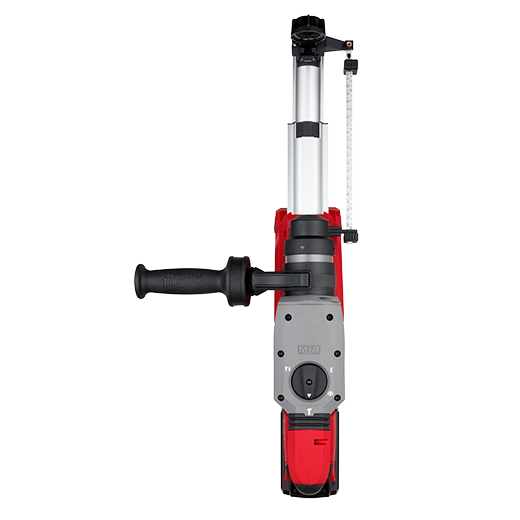

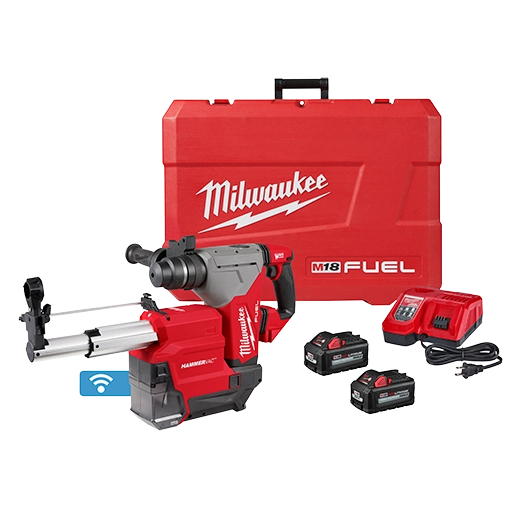

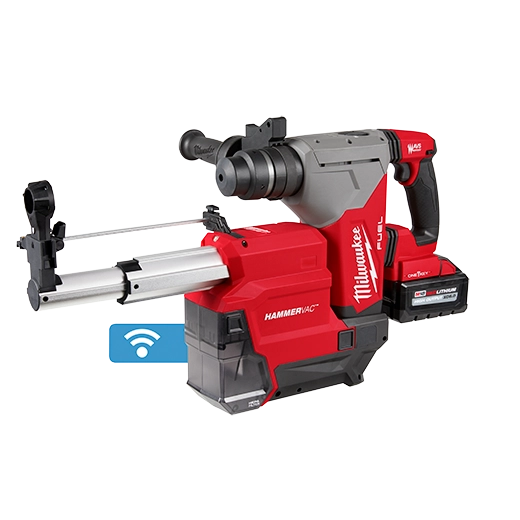

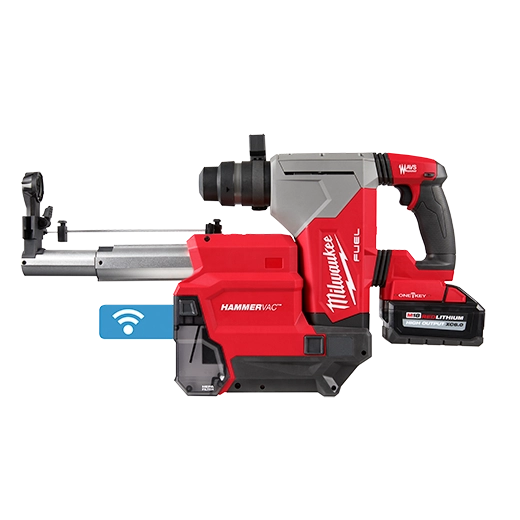

M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY™ & HAMMERVAC™ Dedicated Dust Extractor Kit

Our M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY™ & HAMMERVAC™ Dedicated Dust Extractor Kit is the next generation of cordless rotary hammers, delivering you ultimate jobsite performance and productivity. The M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer is the fastest drilling and hardest-hitting rotary hammer in its class with AUTOSTOP™ Control for enhanced safety, drilling up to 50 5/8" x 3" holes per charge when paired with the M18™ HIGH OUTPUT™ XC6.0 Battery. This cordless hammer drill provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control. This feature prevents over-rotation if the tool gets bound up while drilling in rebar or hard aggregate. The MILWAUKEE® M18 FUEL™ HAMMERVAC™ 1-1/8" Dedicated Dust Extractor features an inline design engineered to connect directly to and be power by the M18 FUEL™ 1-1/8” SDS Plus Rotary Hammer. Utilizing the same replaceable certified HEPA filter as other HAMMERVACS™, which filters 99.97% of all particles greater than 0.3µm, means more compatibility on the jobsite. The built-in adjustable depth stop and ruler offer easy and precise adjustments. This dust extractor has OSHA Table One Compliance for respirable crystalline silica when drilling up to 1-1/8" in diameter and 8" in depth. This extractor features AUTOPULSE™ Filter Cleaning Mechanism that automatically cleans the filter after each use. The dust box comes equipped with a vacuum port for suctioning out the dust with a large vacuum or dust extractor instead of dumping the dust out into a trash receptacle.

1-1/8" SDS PLUS ROTARY HAMMER
W/ ONE-KEY™

FASTEST
DRILLING,
HARDEST HITTING
AUTOSTOP™
CONTROL,
ENHANCED SAFETY
UP TO
50 5/8" x 3"
HOLES
PER CHARGE

FASTEST DRILLING, HARDEST HITTING

  • The M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY™ is faster drilling and harder hitting than both corded and cordless 1-1/8" rotary hammers leading to increased productivity.

AUTOSTOP™ CONTROL, ENHANCED SAFETY

  • AUTOSTOP™ Kickback Control prevents over-rotation by stopping the hammer if it binds up during drilling when hitting rebar or hard aggregate.

UP TO 50 5/8” X 3” HOLES PER CHARGE

  • With the M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery this hammer can deliver up to (50) 5/8" x 3" holes per charge.
M18

PERFORMANCE DRIVEN
TRADE FOCUSED
SYSTEM WIDE

  • POWERSTATE™ Brushless Motor provides more power, more run-time, and longer life
  • REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging
  • The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
  • 3.6 ft-lbs Impact Energy
  • ONE-KEY™ technology allows for tracking, tool security, and inventory management
  • AVS Anti-Vibration System: Minimizes vibration for maximum comfort
  • 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
  • Includes M18 HAMMERVAC 1-1/8" Dedicated Dust Extractor
  • AUTOPULSE Filter Cleaning Mechanism cleans the dust extractor filter automatically after use
  • OSHA Table 1 Compliant Solution
  • Dust Extractor Capacity: Up to 1-1/8" in Diameter and Up to 8" in Depth
  • 800 RPM and 4,600 BPM
Recommendations

Battery Specifications

Voltage 18V
Battery Type 18 Volt Lithium Ion

Product Specifications

Rotary Hammer Size 1-1/8
Tool Warranty 5 Year (Tool), 3 Years (Battery)
Power Source Cordless
Type de moteur POWERSTATE Brushless
Handle Type Drop Motor
Material Composition Metal
Longitud 15.2 in
Weight 15.5 lb
Height 10.2 in
Width 3.4 in
No Load Speed 800 RPM
Blow Energy 3.6 ft-lbs
BPM 0-4600
Solid Bit Capacity 1-1/8"
Thin Wall Core Bit Capacity 3"
Drilling Mode 3-Mode: Rotary Hammer, Hammer Only, Rotation Only`
Vibration AVS™ Anti-Vibration System
Brushless Yes
Battery System M18
Chuck Size 1-1/8
Chuck Type SDS Plus
Dust Extractor Included Yes
Régime maximal 800 rpm
